JCS MODEL 420-T TON MOUNTED VACUUM REGULATOR

The JCS Industries Model 420-T Ton Mounted Vacuum Regulator is designed for years of safe and reliable service.

Incorporated into the robust design are machined front and back bodies, internal (Non-latching) switching mechanism, internal pressure relief vent and a non-metallic inlet valve assembly. The Model 420-T can be either direct ton cylinder mounted or installed on multiple cylinder pressure headers.

The JCS Model 420-T operates as a pressure reducing valve to transfer gas under pressure to gas under vacuum within the chemical feed system.

Installed between the ton container of the chosen gas and the Chemical Feeder Model 4200, the Model 420-T will switch from one ton container to the next one in line as soon as the gas in the first ton container is depleted. An internal switchover valve is automatically initialized in the event of gas supply failure; the reduction of the vacuum will isolate the regulator diaphragm cavity from pressurized pipe work.

JCS MODEL 420-INJ INJECTOR

The JCS Industries Model 420-INJ Chemical Injector is designed to easily and safely deliver chemical into the water supply using an existing water line.

The Model 420-INJ Chemical Injector operates using vacuum by utilizing the venturi effect, which is a byproduct of water flow though the system. The injector will only function when there is sufficient water pressure in the unit and will only function when the system is operating.

JCS MODEL 420-RMT REMOTE METER PANEL

The JCS Industries Model 420 Remote/Mini-Remote Meter Panel is designed to safely deliver and meter gaseous chemical from the vacuum regulator to the injector. Both the remote meter and the mini-remote meter assemblies are designed to precisely deliver chemical over months at a time without service.

JCS MODEL 4100-LC LARGE CAPACITY VACUUM FEEDER

The JCS Industries Model 4100-LC Liquid Vacuum Chemical Feeder is for operations that require high efficiency, accuracy, control and safety. The Model 4100-LC will feed numerous aqueous chemicals commonly used in municipal and industrial water treatment systems, i.e, sodium hypochlorite, sodium bisulfate, aluminum sulfate, ammonium sulfate, acids, sodium hydroxide, non-oxidizing biocides, scale and corrosion inhibitors.

The JCS Model 4100-LC Liquid Feeder will automatically regulate in both fixed and variable control modes.

Control Modes:
-Fixed Feed Rate
-Flow Paced
-Residual Control
-Compound Loop

JCS MODEL 4100-EC LIQUID VACUUM FEEDER

The JCS Industries Model 4100 EC Liquid Vacuum Chemical Feeder is for operations that require high efficiency, accuracy, control and safety. The Model 4100 EC will feed numerous aqueous chemicals commonly used in municipal and industrial water treatment systems, i.e, sodium hypochlorite, sodium bi-sulfate, aluminum sulfate, ammonia sulfate, acids, sodium hydroxide, non-oxidizing biocides, scale and corrosion inhibitors. (methanol, ethanol)

The JCS Model 4100 EC Liquid Feeder will automatically regulate in both fixed and variable control modes.

Control Modes:
-Fixed Feed Rate
-Flow Paced
-Residual Control
-Compound Loop

JCS MODEL 4120 LIQUID VACUUM SWITCHOVER

The JCS Industries Model 4120 Liquid Vacuum Switchover is a robust device that has been designed to aid in applications where impurities or fouling materials might cause a feed-water or primary vacuum source injector to clog or become inefficient. In such a case, the model 4120 automatically allows for a second, backup injector to take over the chemical feed process. The Model 4120 will, as soon as reduced flow is detected, instantly shut down the primary vacuum source or injector and switch flow to the secondary injector or vacuum source, thus allowing uninterrupted operations.

JCS MODEL 4130 CHEMICAL DILUTION SYSTEM

The JCS Model 4130 Chemical Dilution System is a robust device that has been designed to aid in applications where the feeding of dilute chemicals is required by regulations or desired for optimal feed situations. The Model 4130 dilutes the specific chemical using a calculated all vacuum batch process in which a desired concentration and volume are entered into the Model 4130 controller. The operator reviews the selected parameters and presses start. All dilution water and chemicals are controlled and precisely metered throughout the dilution process.

JCS MODEL 4140 VIM-OC

The JCS Industries Model 4140 VIM-OC Vacuum Induction Mixer is a proven and reliable device that utilizes vacuum to safely and effectively induce both gaseous and aqueous chemicals into open channel water stream applications.

The 3500 rpm mixer delivers a high degree of chemical dispersion and mixing efficiency.

The robust design as well as the high quality of materials used enables the JCS Model 4140 to stand up to any harsh environment application. The materials of construction can be changed to accommodate chemical compatibility.

JCS MODEL 4180 TWO PRECURSOR CHLORINE DIOXIDE GENERATOR

The JCS Industries Model 4180 All Vacuum Chemical Feeder is for operations that require high efficiency, accuracy, control and safety. The Model 4180 will feed a chlorine dioxide solution used in municipal and industrial water treatment systems.

The system is comprised of a vacuum injector that safely introduces chlorine gas and sodium chlorite simultaneously into the feed-water stream.

The Model 4180 uses dual reversing servo motors coupled with a v-notch valve to regulate the chemical feed rate, an electronic flow sensor for the sodium chlorite and a calibrated borosilicate glass rotameter for Cl2 gas to generate a > 95% ClO2 solution. The unique design allows for a continuous adjustment of both of the chemicals based off the actual chlorite feed rate to ensure accurate feed throughout the operator's desired range. Internal electronics allow for feed system to be remotely monitored and controlled from user's SCADA.

Control Modes:
-Fixed Feed Rate
-Flow Paced
-Residual Control
-Compound Loop

JCS MODEL 4180 THREE PRECURSOR CHLORINE DIOXIDE GENERATOR

The JCS Industries Model 4180 All Vacuum Chemical Feeder is for operations that require high efficiency, accuracy, control and safety. The Model 4180 will feed a chlorine dioxide solution used in municipal and industrial water treatment systems.

The system is comprised of a vacuum injector that safely introduces sodium hypochlorite, sodium chlorite, and hydrochloric acid simultaneously into the feed-water stream.

The Model 4180 uses triple reversing servo motors coupled with v-notch valves to regulate the chemical feed rate, an electronic flow sensor for the sodium chlorite, sodium hypochlorite, and hydrochloric acid to generate a >95% ClO2 solution. The unique design allows for a continuous adjustment of all of the chemicals based off the actual chlorite feed rate to ensure accurate feed throughout the operator's desired range. Internal electronics allow for feed system to be remotely monitored and controlled from users SCADA.

The JCS Model 4180 Chlorine Dioxide Generator will automatically regulate in both fixed and variable control modes.

JCS MODEL 4200 GAS VACUUM CHEMICAL FEEDER

The JCS Industries Model 4200 Gas Vacuum Chemical Feeder mixes and feeds gaseous chemicals commonly used for water and wastewater disinfection accurately, reliably and safely. The system is comprised of a vacuum injector to safely introduce the gas into the feed-water stream, a reversing servo motor coupled with a V-notch valve to regulate the chemical flow rate, and a control module for complete electronic control and communications.

Control Modes:
-Fixed Feed Rate
-Flow Paced
-Residual Control
-Compound Loop

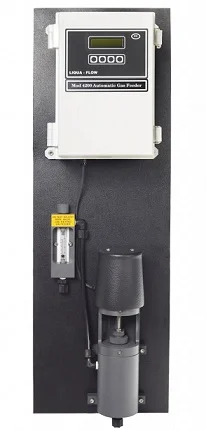

JCS MODEL 4200-LC AUTOMATIC GAS FEED CONTROLLER

The JCS Industries Model 4200-LC Automatic Gas Feed Controller feeds gaseous chemicals commonly used for water and wastewater disinfection accurately, reliably and safely. The system is comprised of a vacuum injector to safely introduce the gas into the feed-water stream, a reversing servo motor coupled with a V-notch valve to regulate the chemical flow rate, and a control module for complete electronic control and communications.

Control Modes:
-Fixed Feed Rate
-Flow Paced
-Residual Control
-Compound Loop

JCS MODEL 4200-EC AUTOMATIC GAS FEED CONTROLLER

The JCS Industries Model 4200-EC Automatic Gas Feed Controller feeds gaseous chemicals commonly used for water and wastewater disinfection accurately, reliably and safely. The system is comprised of a vacuum injector to safely introduce the gas into the feed-water stream, a reversing servo motor coupled with a V-notch valve to regulate the chemical flow rate, and a control module for complete electronic control and communications.

Control Modes:
-Fixed Feed Rate
-Flow Paced
-Residual Control
-Compound Loop

JCS MODEL 4400 RESIDUAL CHLORINE ANALYZER

The JCS Industries Model 4400 Residual Chlorine Analyzer is an amperometric probe type analyzer that accurately measures both free and total chlorine in potable water. Its primary applications are in municipal and industrial water treatment applications. It can be used for waste water applications provided that proper filtering is installed in the sample feed line to condition the sample and to reduce suspended and dissolved solids. Digital electronics are incorporated into the controller to simplify operations. The controller provides a 32 character LCD back-lit display that permits operator configured engineering units via a simple four push button interface.

JCS MODEL 4500 GAS LEAK DETECTOR/MONITOR

The JCS Industries Model 4500 Gas Leak Detector/Monitor is a low cost, non-contact and easy to install measurement device designed for monitoring trace amounts of compressed gaseous water treatment chemicals such as, but not limited to: chlorine, sulfur dioxide and ammonia in a closed or open environment.

This unit monitors toxic suspended molecules in the atmosphere. In a leaking scenario, the Model 4500 activates an alarm when gas levels exceed the programmed maximum rates.

The monitoring sensors are compact and are designed for unobtrusive wall mounting in any convenient position. Installation, commissioning and maintenance are simplified by the modular design of the electronics.

The Model 4500 can monitor up to two different gases simultaneously with each main controller.

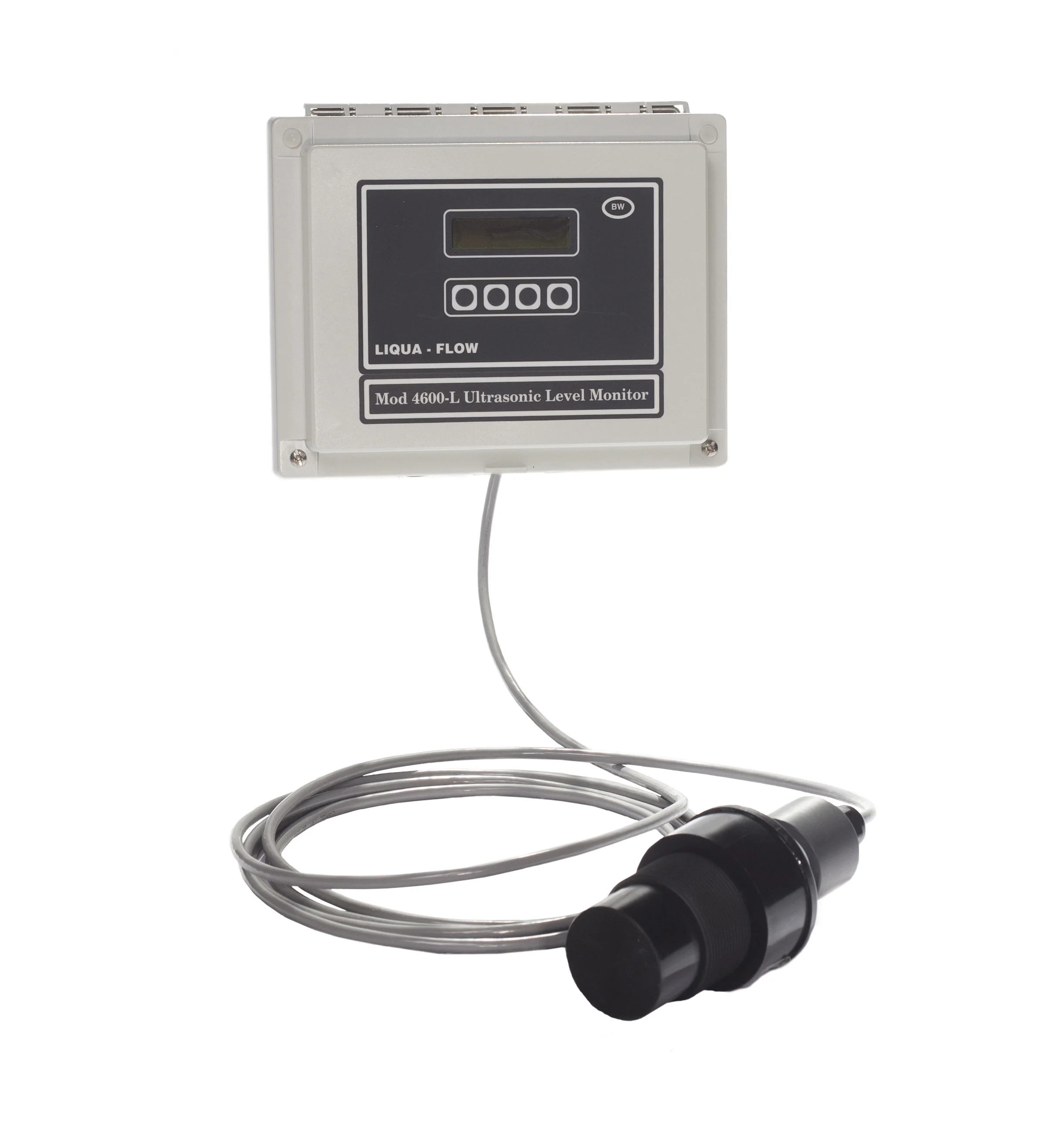

JCS MODEL 4600 ULTRASONIC LEVEL / FLOW MONITOR

The JCS Industries Model 4600 Ultrasonic Level / Flow Monitor is designed to provide accurate and reliable level and flow rate measurements in the treatment process where harsh environments exist.

The Model 4600 can easily be configured for bulk chemical storage tanks providing a continuous level or volume readout, or in an open channel environment where a calculation can be entered to the monitor to display and totalize flow.

The Model 4600 has internal data logging capability to aid in determination of trend and other important data to assist the user in process diagnostics.

JCS MODEL 4700 ELECTRONIC CYLINDER SCALE

The JCS Industries Model 4700 Electronic Cylinder Scale is designed for years of safe continuous use for weighing 150 pound compressed gas cylinders. The low profile 1.5" 316 stainless steel heavy gauge platform allows for ease of loading while the formed, three sided curb aids in proper alignment. The Model 4700 scale also incorporates a unique hidden hinge design to allow personnel to lift and completely remove the platform for easy cleaning. The Model 4700 can be set up for single or dual cylinder operation with independent analog outputs as well as adjustable outputs for accurate and reliable operations.

JCS MODEL 4710 ELECTRONIC TON CYLINDER SCALE

The JCS Model 4710 Electronic Ton Cylinder Scale is designed for years of safe continuous use for weighing 2,000 pound compressed cylinders. The low profile 2.5" Epoxy coated tubular steel frame coupled with UHMW poly-ethylene rollers allows for positioning and rotating the container with ease. The rolled tubular design eliminates angular edge hazards.

The Model 4710 can be set up in a single or dual independent configuration capable of dedicated analog and digital outputs for monitoring and alarm conditions.

MODEL RC ACTUATOR

Overview

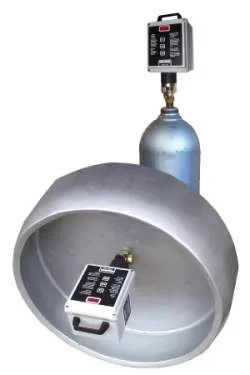

The Model RC is an actuator that REMOTELY CLOSES the valve on compressed gas cylinders such as chlorine, sulfur dioxide and ammonia cylinders and ton containers.

The actuator is battery-operated with an electric motor that rotates the valve stem towards the closed position for alignment, tests and remote operation. The actuator is designed to mount without interfering with cylinder mounted hardware such as chlorinators, regulators etc. No yoke modifications or additional adapters are required. The motor, gears and controls are assembled as one unit.

Capabilities

• Battery operated with automatic charger
• NO heavy or bulky signal cables
• Remote close by leak detector, panic button or other digital signals such as PLC or computer
• Easily attaches to valve
• Can be used on chlorine and sulfur dioxide 150# cylinders or ton containers
• Eliminates the need for scrubbers in certain applications per the Uniform Fire Code

MODEL RCTVR ACTUATOR

Overview

The Model RC-TVR is an actuator that REMOTELY CLOSES the valve on compressed gas containers such as chlorine and sulfur dioxide.

The actuator is battery-operated with an electric motor that rotates the valve stem towards the closed position for alignment, tests and remote operation. The actuator is designed to mount without interfering with container mounted hardware such as chlorinators, regulators etc. No yoke modifications or additional adapters are required. The motor, gears and controls are assembled as one unit.

Capabilities

• Battery operated with automatic charger
• NO heavy or bulky signal cables
• Remote close by leak detector, panic button or other digital signals such as PLC or computer
• Easily attaches to valve
• Eliminates the need for scrubbers in certain applications per the Uniform Fire Code

MODEL 2000C ACTUATOR

Overview

The Model 2000C is an actuator system that can REMOTELY OPEN & CLOSE the valves on chlorine and sulfur dioxide ton containers.

The system includes a battery operated actuator with an electric motor that rotates the valve stem towards the open or closed position for alignment, tests and remote operation. The actuator is designed to mount without interfering with or requiring yokes or additional adapters for dispensers or discharging hardware. The motor, gears and controls are assembled as one unit.

Capabilities

• Battery operated with automatic charger
• Optional integral leak detection for automatic shutdown
• Remote close by leak detector, panic button or other digital signals such as PLC or computer
• Easy to install or remove
• Can be used on chlorine and sulfur dioxide ton containers
• Eliminates the need for scrubbers in certain applications per the Uniform Fire Code

MODEL U ACTUATOR

Overview

The Model U is an actuator system that can REMOTELY OPEN & CLOSE the valve on a chlorine or sulfur dioxide 150# cylinder or ton container.

The system includes a battery operated actuator with an electric motor that rotates the valve stem towards the open or closed position for alignment, tests and remote operation. The actuator is designed to mount without interfering with or requiring yokes or additional adapters for dispensers or discharging hardware. The motor, gears and controls are assembled as one unit.

Capabilities

• Battery operated with automatic charger
• Optional integral leak detection for automatic shutdown
• Remote close by leak detector, panic button or other digital signals such as PLC or computer
• Easily attaches to valve
• Can be used on chlorine and sulfur dioxide 150# cylinders or ton containers
• Eliminates the need for scrubbers in certain applications per the Uniform Fire Code

MODEL RPB001 REMOTE PUSH BUTTON

Overview

The Model RPB001 is a mushroom push-button mounted in a polycarbonate enclosure. The package is designed to offer operators the ability to close all actuators at one time from a remote location. The enclosure switch is compatible with chlorine and sulfur dioxide containment areas. The twist to unlock normally-open switch is rated at 10 Amps at 230 VAC.
